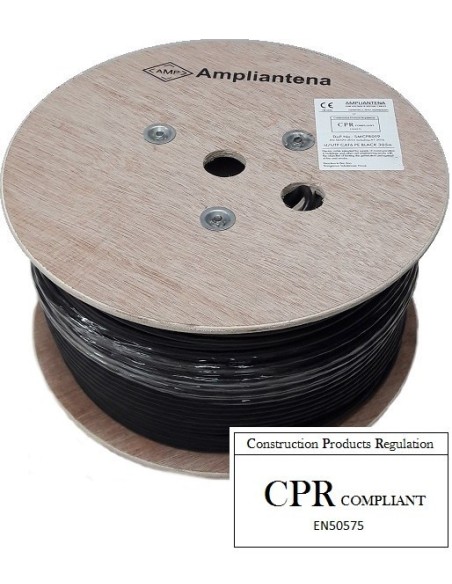

UTP Cable Cat5E CU PE 305m Fca Black

44-AMP560
AMP560 Cable UTP Cat5E PE Negro, 305m, CPR Euroclass Fca

UTP Cable Cat5E CU PE 305m Fca Black

44-AMP560

Are you a dealer or professional installer?

  • Get your quotation in few minutes
  • Exclusive prices
  • Customized manufacturing
Request for quotation
CPR regulations
Euroclass Fca
Type
UTP
Bandwidth
1 MHz – 100 MHz
Impedance
100±15 Ω
Color
Black
Conductor
Material: Copper
Nominal diameter: 0.50±0.005mm
Type: 24AWG
Category
Cat5E
Packaging
305m wooden coil
Standard Test
ISO/IEC11801, TIA/EIA 568C.2
Cover
Diameter: 5.3±0.3 mm
Material: PE
Thickness: 0.50±0.05 mm
Color code
Pair 1: Blue, Blue-White
Pair 2: Orange, Orange-White
Pair 3: Green, Green-White
Pair 4: Brown, Brown-White
Tensile strength (Mpa)
≥10
Elongation (%)
≥350
Differential delay (20℃)
≤45 (ns/100m)
DC Resistance (20℃)
9.5 (Ω/100m) max
Unbalanced DC Conductor Resistance
5.0 (%)max
Tear thread
Yes
