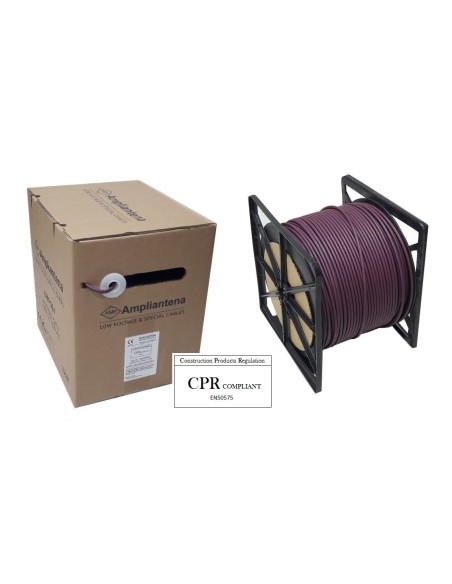

UTP Cable Cat6 CU LSHF 305m Eca Violet
44-AMP564
UTP Cable Cat6 CU LSHF 305m Eca Violet
44-AMP564
€145.77
Tax included
- CPR regulations
- Euroclass Eca
- Type
- UTP
- Bandwidth
- 1 MHz – 250 MHz
- Impedance
- 100±15 Ω
- Color
- Violet
- Conductor
- Material: Copper
Nominal diameter: 0.50±0.015 mm
Type: 23AWG - Insulation
- Diameter: 1.02 ± 0.03 mm
Material: HDPE - Category
- Cat.6
- Packaging
- Plastic reel of 305m
- Cover
- Diameter: 5.0±0.3 mm
Material: LSZH
Thickness: 0.50±0.05 mm - Color code
- Pair 1: Blue, Blue-White
Pair 2: Orange, Orange-White
Pair 3: Green, Green-White
Pair 4: Brown, Brown-White - Tensile strength (Mpa)
- ≥10
- Elongation (%)
- ≥125
- Differential delay (20℃)
- ≤45 (ns/100m)
- DC Resistance (20℃)
- 12 (Ω/100m) max
- Unbalanced DC Conductor Resistance
- 5.0 (%)max
- Tear thread
- Yes
- Crosshead
- Yes
