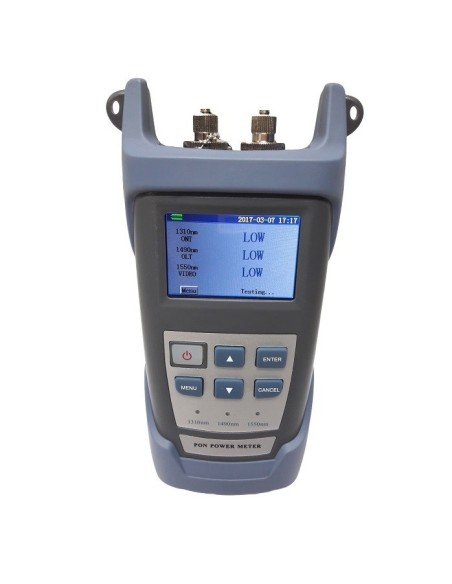

PON optical power meter, 1310-1490-1550 nm
08-AMP951
PON optical power meter, 1310-1490-1550 nm
08-AMP951
Are you a dealer or professional installer?
- Get your quotation in few minutes
- Exclusive prices
- Customized manufacturing
- Dimensions
- 180x95x42 mm
- Weight
- 300g
- Battery
- Li-ion 7.4V 1100 mAh
- Operating temperature
- -10ºC- 60°C
- Fibre type
- Singlemode
- Display
- Color LCD
- Dynamic range
- Wavelenght (1310 nm): -40 - +10 dBm
Wavelenght (1490 nm): -40 - +10 dBm
Wavelenght (1550 nm): -40 - +20 dBm - Spectral width
- Wavelenght (1310 nm): 1260-1360 nm
Wavelenght (1490 nm): 1470-1505 nm
Wavelenght (1550 nm): 1535-1570 nm - Isolation 1310 nm
- Wavelenght (1310 nm): -
Wavelenght (1490 nm): 40dB
Wavelenght (1550nm): 40dB - Isolation 1490 nm
- Wavelenght (1310 nm): 40dB
Wavelenght (1490 nm): -
Wavelenght (1550 nm): 30 dB - Isolation 1550 nm
- Wavelenght (1310 nm): 40 dB
Wavelenght (1490 nm): 40 dB
Wavelenght (1550 nm): - - Linearity
- +0.1 dB
- Measurement accuracy
- ± 0.5 dB
- PDL
- Lower than ± 0.25 dB
- Signal loss
- Lower than 1.5 dB
