Global Skyware 180cm Ku Band Receive-Only Antenna System

04-AMP94

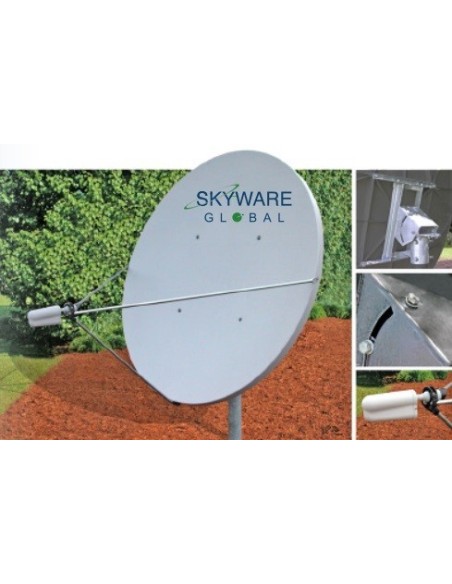

AMP94 1.80m Skyware

Global Skyware 180cm Ku Band Receive-Only Antenna System

04-AMP94

Are you a dealer or professional installer?

  • Get your quotation in few minutes
  • Exclusive prices
  • Customized manufacturing
Request for quotation
Operating frequency
10.95 - 12.75 GHz
Gain
45.5 dBi
Polarization
Linear (Circular Optional)
Diameter
1.8m (71in)
3 dB Beamwidth
1.0°
Feed Interface
WR75 Flat Flange
Operating temperature
-50°C ~ 80°C
Humidity
0% - 100%
Antenna noise temperature 30º EL
31°K
VSWR
1.3:1
Cross-Polarization Discrimination (Linear)
30 dB on Axis (Linear)
Reflector material
Glass Fiber Reinforced Polyester
Antenna optics
One-piece Offset Feed Prime Focus
Mount type
Elevation over Azimuth
Elevation adjustment range
10º - 70º continuous fine adjustment
Azimuth adjustment range
360° Continuous +/-10° Fine Adjustment
Mast pipe diameter
114mm (4.5in)
Wind loading (operational)
80 km/h (50mph)
Wind loading (survival)
200 km/h (125mph)
Atmosphere
Standard Hardware 500h SST - Requirements (ASTM B-117)
Solar radiation
360 BTU/h/ft2
Shock and vibration
As encountered during shipping and handling
