Global Skyware 240cm Ku Band Receive-Only Antenna System
04-AMP95
Global Skyware 240cm Ku Band Receive-Only Antenna System
04-AMP95
Are you a dealer or professional installer?
- Get your quotation in few minutes
- Exclusive prices
- Customized manufacturing
- Operating frequency
- 10.70 - 12.75 GHz
- Gain
- 47.6 dBi
- Polarization
- Linear (Circular Optional)
- Diameter
- 2.4m (96in)
- 3 dB Beamwidth
- 0.7°
- Feed Interface
- WR75 Flat Flange
- Operating temperature
- -50°C ~ 80°C
- Humidity
- 0% - 100%
- Antenna noise temperature 30º EL
- 31°K
- VSWR
- 1.3:1
- Cross-Polarization Discrimination (Linear)
- 30 dB on Axis (Linear)
- Reflector material
- Glass Fiber Reinforced Polyester
- Antenna optics
- One-piece Offset Feed Prime Focus

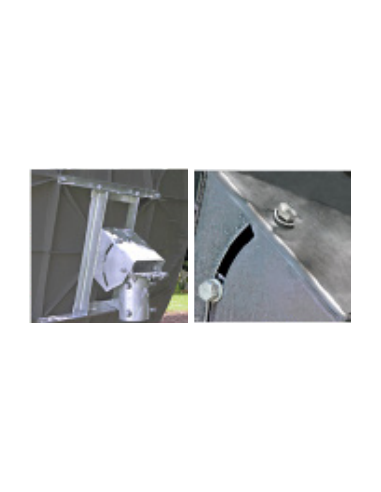

- Mount type
- Elevation over Azimuth
- Elevation adjustment range
- 10° - 90° Continuous fine adjustment
- Azimuth adjustment range
- 360° Continuous +/-12° fine adjustment
- Mast pipe diameter
- 168mm (6.63in)
- Wind loading (operational)
- 80 km/h (50mph)
- Wind loading (survival)
- 200 km/h (125mph)
- Atmosphere
- Standard Hardware 500h SST - Requirements (ASTM B-117)
- Solar radiation
- 360 BTU/h/ft2
- Shock and vibration
- As encountered during shipping and handling
